Chinese factory manufacturer sells capsule tire vulcanizers machine at low prices

1 Set
MOQ
Chinese factory manufacturer sells capsule tire vulcanizers machine at low prices
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Condition: New
Machine Type: Vacuum Vulcanizing Press
Voltage: 380V
Dimension(L*W*H): 800mm*1800mm
Weight: 250kg
Warranty: 5 years
Key Selling Points: Easy to Operate
Showroom Location: None
Applicable Industries: Manufacturing Plant, Retail, Energy & Mining
After-sales Service Provided: Free spare parts, Field maintenance and repair service, Online support, Video technical support
After Warranty Service: Video technical support, Online support
Local Service Location: Turkey
Certificering: ISO
Product name: Tire Capsule Vulcanizing machine
Clamping force: 70T
Specification: 8-19 inches
diameter of hot plate: 800mm
Heating method of hot plate: steam heating
Cylinder stroke: 1800mm
Cylinder diameter: 220mm
working layers: 2 layers
Structure: vertical frame structure
Working pressure of hydraulic system: 17-19mpa (up to 31.5mpa)
Basis informatie
Certificering: ISO
Betalen & Verzenden Algemene voorwaarden
Productomschrijving
Product Description

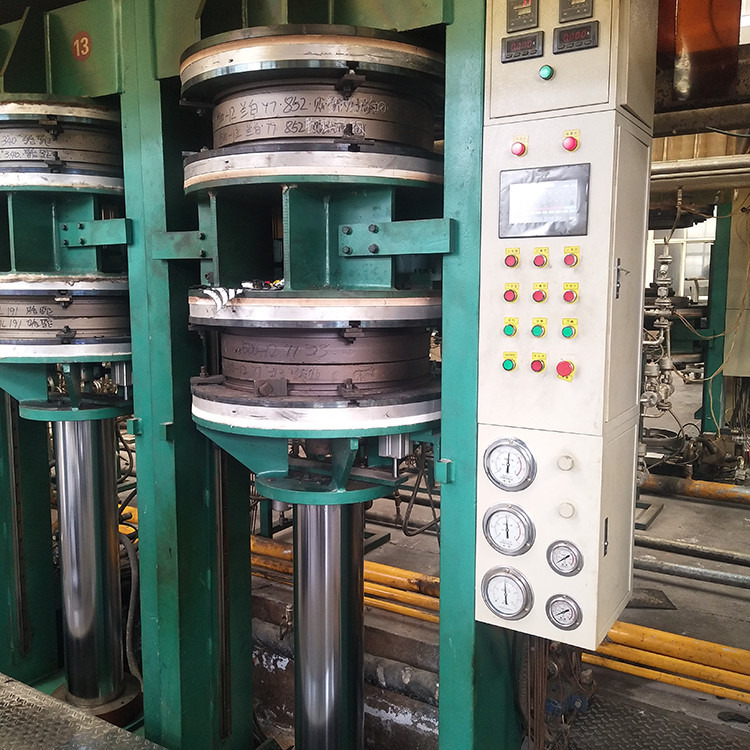

The main features of the capsule vulcanizer are high Film pressure and double heating; short vulcanization time and good quality. High production efficiency (one person can operate 8-10 sets), low labor intensity (general women can operate), low labor cost, high safety performance and high degree of automation.

Clamping force

70T

Specification

8-19 inches

diameter of hot plate

800mm

Heating method of hot plate

steam heating

Cylinder stroke

1800mm

Cylinder diameter

220

working layers

2 layers

Structure

vertical frame structure

Working pressure of hydraulic system

17-19mpa (up to 31.5mpa)

Power supply

380V

Hydraulic station capacity

one tow of five to ten vulcanizing machines

Detailed Images

Certifications

Packaging & Shipping

Company Information

Dopoda(Jining) Intelligent Technology co., LTD is located in Jining ,China . It is one of the leading industrial intelligent integrated solution providers in China.With the core concept of "industry + intelligence", the company provides a complete product and service system for the fields of aerospace, rail transit, comprehensive energy, basic industry and consumer goods manufacturing. Our mission is to create a healthy and intelligent life. Our products are exported to more than 30 countries and regions such as Germany, France, Sweden, Japan, Russia, etc.Welcome to visit us !
